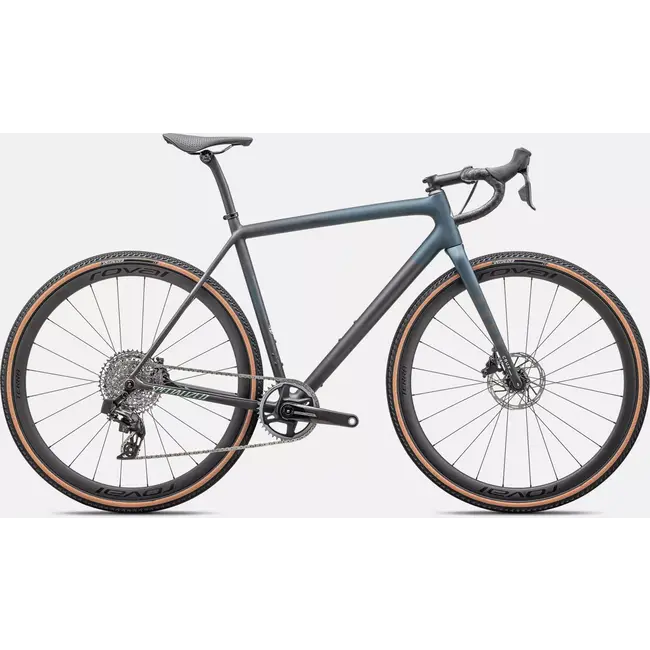

"The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
This Crux Pro comes spec'd with a accurate and quick-shifting SRAM Force eTap AXS hydraulic disc groupset, lightweight and durable Roval Terra CL Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain."
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
Frameset
- Frame
- Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
- Front Brake
- SRAM Force eTap AXS
- Rear Brake
- SRAM Force eTap AXS
Drivetrain
- Chain
- SRAM Force 12-speed
- Cassette
- SRAM XPLR, XG-1251, 12-speed, 10-44t
- Bottom Bracket
- SRAM DUB BSA 68
- Shift Levers
- SRAM Force eTap AXS
- Crankset
- SRAM Force 1x
- Rear Derailleur
- SRAM Force XPLR eTap AXS
- Chainrings
- 40t
Wheels & tires
- Inner Tubes
- 700x28/38mm, 48mm Presta valve
- Front Tire
- Pathfinder Pro 2BR, Tan Sidewall, 700x38
- Rear Tire
- Pathfinder Pro 2BR, Tan Sidewall, 700x38
- Front Wheel
- Roval Terra CL, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
- Rear Wheel
- Roval Terra CL, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
Cockpit
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset
- Handlebars
- Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
- Saddle
- Power Pro with Mirror
- Seat Binder
- Specialized Alloy, 30mm
- Stem
- Specialized Pro SL, alloy, 4-bolt, 6-degree rise
- Tape
- Supacaz Super Sticky Kush
Product details
- Product ID
- 223481
Weight
- Weight Size
- 56
- Weight
- 7.63kg (16 lb, 13.1 oz)
| Crank Length |
165 |
170 |
172.5 |
172.5 |
175 |
175 |
| Handlebar Width |
380 |
400 |
420 |
420 |
440 |
440 |
| Stem Length |
70 |
80 |
90 |
100 |
110 |
110 |
| Saddle Width |
155 |
155 |
143 |
143 |
143 |
143 |
| Seatpost Length |
330 |
330 |
330 |
380 |
380 |
380 |
| Stack |
530 |
547 |
560 |
578 |
598 |
621 |
| Reach |
375 |
382 |
388 |
397 |
405 |
415 |
| Head Tube Length |
100 |
115 |
130 |
147 |
167 |
190 |
| Head Tube Angle |
70.5 |
71.25 |
71.5 |
72 |
72.25 |
72.5 |
| BB Height |
284 |
284 |
286 |
286 |
286 |
286 |
| BB Drop |
74 |
74 |
72 |
72 |
72 |
72 |
| Trail |
74 |
69 |
67 |
64 |
62 |
60 |
| Fork Length, Full |
401 |
401 |
401 |
401 |
401 |
401 |
| Fork Rake/Offset |
50 |
50 |
50 |
50 |
50 |
50 |
| Front Center |
594 |
600 |
608 |
618 |
630 |
644 |
| Chainstay Length |
425 |
425 |
425 |
425 |
425 |
425 |
| Wheelbase |
1008 |
1014 |
1023 |
1033 |
1045 |
1059 |
| Top Tube Length, Horizontal |
512 |
539 |
549 |
568 |
582 |
599 |
| Bike Standover Height |
749 |
772 |
794 |
816 |
841 |
866 |
| Seat Tube Length |
466 |
496 |
521 |
546 |
576 |
606 |
| Seat Tube Angle |
75.5 |
74 |
74 |
73.5 |
73.5 |
73.5 |
