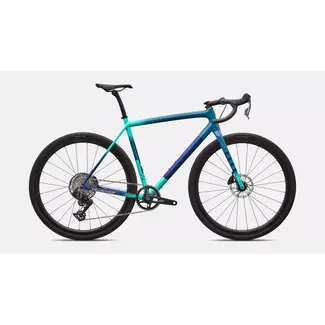

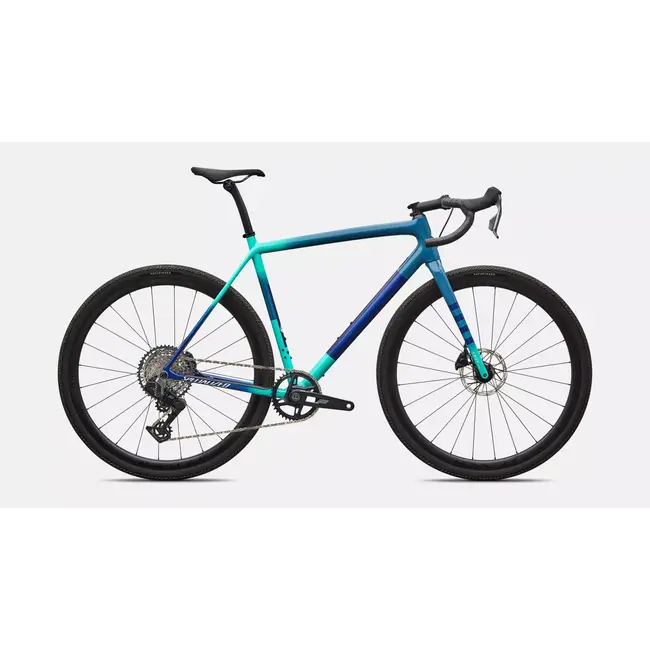

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.
This Crux Expert comes spec'd with all-new SRAM Rival XPLR AXS for effortless braking, lighter weight, with massive 13 speed gear range, lightweight and durable Roval Terra C Disc wheels, and 2Bliss Ready, 700x40mm Pathfinder Pro tires that hookup over nasty terrain.
- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
- Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
Frameset
- Frame
- Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
- Front Brake
- NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor
- Rear Brake
- NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor
Drivetrain
- Chainrings
- 40T, INCLUDED W/CRANK SET
- Bottom Bracket
- SRAM DUB BSA
- Crankset
- NEW SRAM Rival XPLR E1
- Shift Levers
- NEW SRAM Rival AXS E1 HRD
- Rear Derailleur
- NEW SRAM Rival XPLR AXS E1
- Chain
- NEW SRAM Rival E1
- Cassette
- NEW SRAM Rival XPLR XG-1351, 13sp, 10-46t
Wheels & tires
- Front Tire
- Pathfinder 700x40, Tan Sidewall, Tubeless Ready
- Rear Tire
- Pathfinder 700x40, Tan Sidewall, Tubeless Ready
- Front Wheel
- Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes
- Rear Wheel
- Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes
- Inner Tubes
- Standard 40mm PV 700x32-50
Cockpit
- Saddle
- Body Geometry Power Expert
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset
- Handlebars
- Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
- Seat Binder
- Specialized Alloy, 30mm
- Stem
- Specialized Pro SL, alloy, 4-bolt
- Tape
- Supacaz Super Sticky Kush
Product details
- Product ID
- 223489
Weight
- Weight Size
- 56
- Weight
- 8.1 kg (17 lb, 13.7 oz)
| Crank Length |
165 |
170 |
172.5 |
172.5 |
175 |
175 |
| Handlebar Width |
380 |
400 |
420 |
420 |
440 |
440 |
| Stem Length |
70 |
80 |
90 |
100 |
110 |
110 |
| Saddle Width |
155 |
155 |
143 |
143 |
143 |
143 |
| Seatpost Length |
330 |
330 |
330 |
380 |
380 |
380 |
| Stack |
530 |
547 |
560 |
578 |
598 |
621 |
| Reach |
388 |
397 |
405 |
415 |
375 |
382 |
| Head Tube Length |
100 |
115 |
130 |
147 |
167 |
190 |
| Head Tube Angle |
70.5 |
71.25 |
71.5 |
72 |
72.25 |
72.5 |
| BB Height |
284 |
284 |
286 |
286 |
286 |
286 |
| BB Drop |
74 |
74 |
72 |
72 |
72 |
72 |
| Trail |
74 |
69 |
67 |
64 |
62 |
60 |
| Fork Length, Full |
401 |
401 |
401 |
401 |
401 |
401 |
| Fork Rake/Offset |
50 |
50 |
50 |
50 |
50 |
50 |
| Front Center |
594 |
600 |
608 |
618 |
630 |
644 |
| Chainstay Length |
425 |
425 |
425 |
425 |
425 |
425 |
| Wheelbase |
1008 |
1014 |
1023 |
1033 |
1045 |
1059 |
| Top Tube Length, Horizontal |
512 |
539 |
549 |
568 |
582 |
599 |
| Bike Standover Height |
749 |
772 |
794 |
816 |
841 |
866 |
| Seat Tube Length |
466 |
496 |
521 |
546 |
576 |
606 |
| Seat Tube Angle |
75.5 |
74 |
74 |
73.5 |
73.5 |
73.5 |
